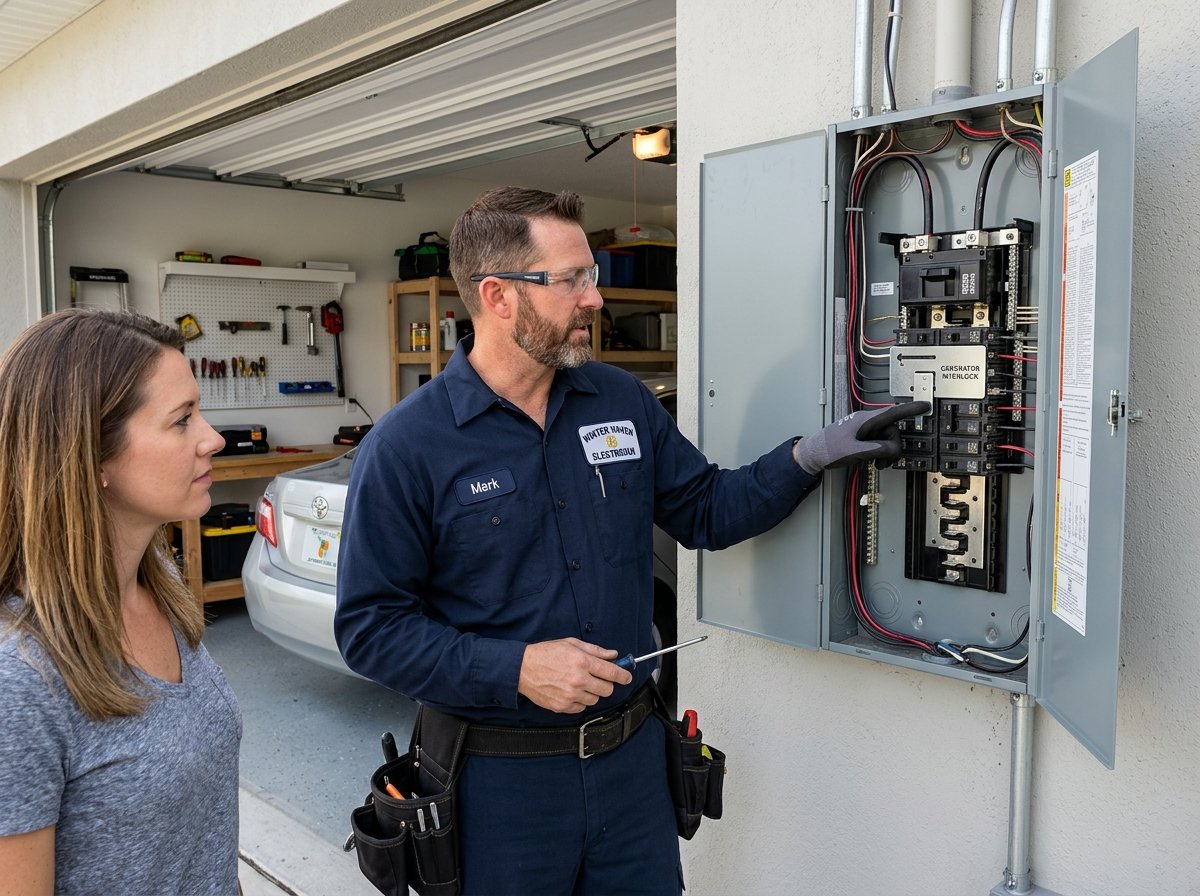

Generator Interlock Kit Installation in Winter Haven, FL
Whole-home standby generators can cost $10,000 to $15,000, but a custom generator interlock kit paired with an exterior 30A or 50A power inlet box allows your portable generator to power your home’s refrigerator, well pump, lights, and AC circuits directly through your existing breaker box for a fraction of the cost.
FL Licensed & Insured
State Certified Electrical Contractor #EC13009841 with full liability coverage.
Same-Day Dispatch
Centrally stationed trucks carrying commercial testing equipment and hardware.
NEC Code Certified
Strict adherence to Florida Building Code and National Electrical Code standards.
5-Star Local Service
Top-rated electrical service across Winter Haven, Auburndale, and Polk County.
Safe Hurricane Power vs. Dangerous Illegal Backfeeding
During hurricane power outages, connecting a generator through a dryer outlet or extension cords through windows creates lethal hazards for utility linemen and your family.
Prevents Utility Backfeeding
The mechanical interlock plate makes it physically impossible for the main utility breaker and the generator breaker to be turned on at the same time, protecting line workers from electrocution.
Select Any Circuit in the Panel
Unlike rigid 6-circuit transfer switches, an interlock kit powers the entire panel busbar. You simply choose which individual breakers to turn on based on your generator wattage capacity.
Exterior Weatherproof Inlet Box
We install a heavy-duty NEMA 3R 30-amp or 50-amp twist-lock inlet receptacle on your home exterior so you can keep the generator safely away from doors and windows, eliminating carbon monoxide poisoning.
⚡ Generator Interlock System Specifications
- • Custom UL-Listed Steel Interlock Plate Specifically Engineered for Your Panel Model
- • 30-Amp (L14-30P, up to 7,500W) or 50-Amp (CS6375 / 14-50P, up to 12,500W) Inlet Box
- • Heavy-Duty Copper 10 AWG or 6 AWG THHN Conduit Feed directly to the Main Panel
- • Dedicated 2-Pole Generator Backfeed Breaker Installed in Top Panel Position
- • Complete Florida Building Code & TECO / Duke Energy Utility Compliance
Frequently Asked Questions
Answers to common homeowner questions regarding codes, safety, and project timelines.
A transfer switch only powers 6 to 10 pre-selected circuits through a separate secondary subpanel. A mechanical interlock kit installs directly on your existing breaker panel and energizes the whole panel busbar, giving you the flexibility to power whichever circuits you choose up to your generator’s wattage capacity—at roughly half the cost.
It depends on your generator size. If you have a larger 9,000W to 12,000W generator and install a Soft Start kit on your AC compressor, it can often start and run a 3-ton to 4-ton heat pump. Smaller portable generators (5,000W–7,500W) easily run refrigerators, freezers, internet, lights, fans, and portable room AC units.
Yes. When installed by a licensed electrical contractor using a UL-listed mechanical interlock plate and permitted through the local building department, it fully complies with the National Electrical Code (NEC 702.6) and utility safety regulations.
A standard generator interlock kit and exterior inlet box installation takes approximately 2 to 4 hours. We test the entire system with your generator on-site to ensure smooth operation before storm season.
